WEICON Multi-Purpose Strippers

universal tool for cable stripping I Flush stripping on walls and ceilings I Round and longitudinal cutting I Working range 0.5 - 16 mm² / 4 - 13 mm Ø I For many different cable types in house installations

WEICON Stripper No.100 is a universal tool for stripping a wide variety of cable types and cross-sections as used in the entire house installation. The tool can be used for circular and longitudinal cutting without adjusting the cutting depth. Especially suitable for flush stripping in ceiling and wall areas, such as in junction and distribution boxes. Also suitable for step-by-step stripping when installing satellite systems.

Automatic stripping tool I Working range 0.5 - 6 mm² I Precise working thanks to integrated length scale I Integrated and well-accessible side cutter up to 6 mm² I Enables fast and accurate stripping

The WEICON Mini-Duo No. 150 automatic stripping tool for all common stranded and solid conductors. The Mini-Duo No. 150 has a visual length scale from 8 - 20mm. With the automatic scanning system no adjustment to the cable cross-section is necessary. The tool is suitable for all common stranded and solid conductors from 0.5 - 6.0 mm². A well-accessible side cutter is integrated in the tool, which is suitable for cable diameters up to 6 mm² (solid conductors up to 4 mm²).

Professional cable stripping I Fast and easy stripping from 0.5 mm² to 6.0 mm² I Stripping: Working range 4 - 28 mm Ø I Spare plade inside the handle shell

WEICON Duo-Stripper No. 200 is an automatic stripping tool. With the automatic scanning system, no adjustment to the cable cross-section is necessary. The stripper has an optical length scale of 8 - 20 mm and is suitable for all common stranded and solid conductors from 0.5 mm² - 6.0 mm². With the holding bracket, cable diameters of 4 - 16 mm or 16 - 28mm can be easily stripped. The cutting depth can be set comfortably and gradually with a control knob.

Stripping and crimping with just one tool I Stripping from 0.5 mm² to 6.0 mm² I Two crimping areas (0.5 - 2.5 mm² and 4.0 - 6.0 mm²) according to DIN 46228-2 I Integrated, well-accessible side cutter up to 6 mm²

With the WEICON Duo-Crimp No. 300 can be used to strip conductors and crimp wire end ferrules. With the automatic scanning system no adjustment to the cable cross-section is necessary. The stripper has an optical length scale of 8 - 20 mm and is suitable for all common stranded and solid conductors from 0.5 mm² - 6.0 mm². The Duo-Crimp No. 300 insulates conductors to a length of 5 mm, preventing the individual conductors from splicing. Two crimping ranges are offered: 0.5 - 2.5 mm² and 4.0 - 6.0 mm². A well-accessible side cutter is integrated in the tool, which is suitable for cable cross-sectors up to 6 mm² (solid conductors up to 4 mm²).

Multifunctional with 4 functions I Round cutting - longitudinal cutting - stripping - cutting I Flush stripping even in locations difficult to reach I Working range 0.5 - 6 mm² / 8 - 13 mm Ø I Secure and space-saving storage thanks to interloc

WEICON Multi-Stripper No. 400, a universal stripping tool for the functions: circular cutting - longitudinal cutting - stripping - cutting. With this tool, cables can be stripped easily even in places that are difficult to access, e.g. in ceilings and walls, in junction and distribution boxes, switch cabinets. The contour blade can be used to strip the conductor cross-sections 0.5 mm², 0.75 mm², 1.5 mm², 2.5 mm², 4.0 mm² and 6.0 mm². The multi-stripper impresses with its handy design and wide range of uses.

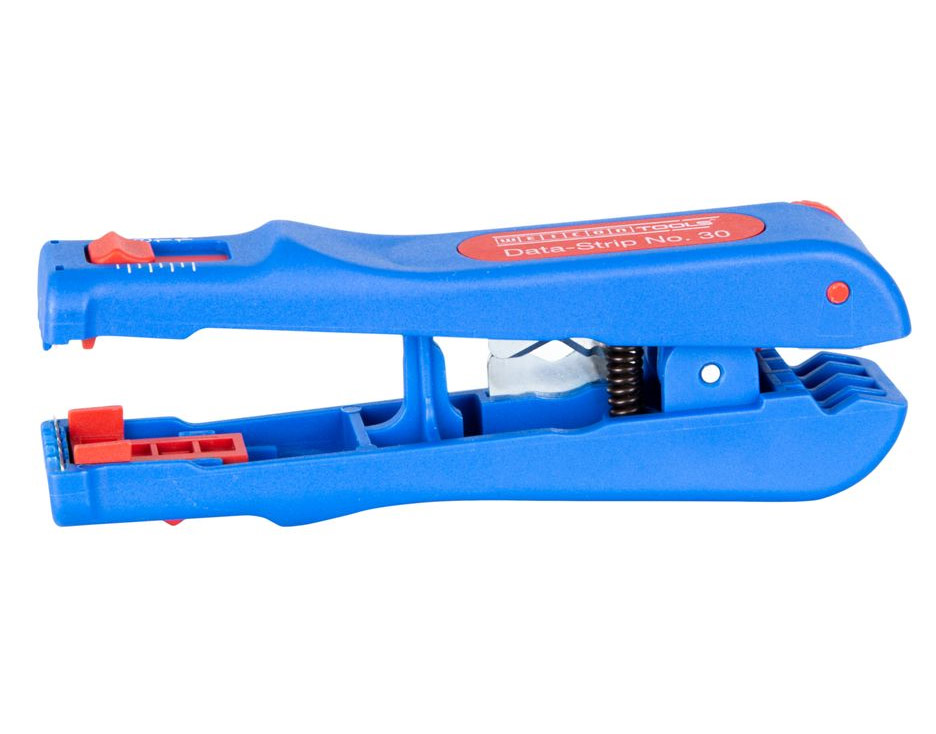

Inner blade adjustable to insulation thickness I Working range 0.05 - 0.5 mm² / 4 - 10 mm Ø I Precise stripping due to adjustable length stop (3.5 - 14 mm) I Integrated, well-accessible side cutter up to 8 mm Ø I Stripping of conductors and strands, e.g. on telephone cables I Removing of the outer insulation of data cables

With the Weicon Data-Strip, shielded data cables and special cables with a diameter of 4 - 10 mm and insulation thicknesses of 0.2 to 1.4 mm can be stripped. The integrated adjusting wheel allows the blade to be set to different insulation thicknesses. The continuously adjustable blade can be replaced if required. Another function is the stripping of the strands with length stop in the range of 0.2 - 0.8 mm. The integrated side cutter effortlessly cuts CU/AI cables up to 8 mm in diameter.

Sustainable stripping tool I Stripping and crimping with just one tool I Stripping from 0.5 mm² to 6.0 mm² I Two crimping areas (0.5 - 2.5 mm² and 4.0 - 6.0 mm²) according to DIN 46228-2 I Integrated, well-accessible side cutter up to 6 mm²

With the Green Line, a very special tool range has been developed. The tools are made of up to 97 % renewable raw materials, which are recyclable and have an excellent life cycle assessment. With the WEICON Duo-Crimp No. 300 Green Line can be used to strip conductors and crimp wire end ferrules. With the automatic scanning system no adjustment to the cable cross-section is necessary. The stripper has an optical length scale of 8 - 20 mm and is suitable for all common stranded and solid conductors from 0.5 mm² - 6.0 mm². The Duo-Crimp No. 300 insulates conductors to a length of 5 mm, preventing the individual conductors from splicing. Two crimping ranges are offered: 0.5 - 2.5 mm² and 4.0 - 6.0 mm². A well-accessible side cutter is integrated in the tool, which is suitable for cable cross-sectors up to 6 mm² (solid conductors up to 4 mm²).

Sustainable stripping tool I Multifunctional with 4 functions I Round cutting - longitudinal cutting - stripping - cutting I Flush stripping even in locations difficult to reach I Working range 0.5 - 6 mm² / 8 - 13 mm Ø I Secure and space-saving storage thanks to interlock

With the Green Line, a very special tool range has been developed. The tools are made of up to 97 % renewable raw materials, which are recyclable and have an excellent life cycle assessment. WEICON Multi-Stripper No. 400 Green Line, a universal stripping tool for the functions: circular cutting - longitudinal cutting - stripping - cutting. With this tool, cables can be stripped easily even in places that are difficult to access, e.g. in ceilings and walls, in junction and distribution boxes, switch cabinets. The contour blade can be used to strip the conductor cross-sections 0.5 mm², 0.75 mm², 1.5 mm², 2.5 mm², 4.0 mm² and 6.0 mm². The multi-stripper impresses with its handy design and wide range of uses.

Sustainable stripping tool I universal tool for cable stripping I Flush stripping on walls and ceilings I Round and longitudinal cutting I Working range 0.5 - 16 mm² / 4 - 13 mm Ø I For many different cable types in house installations

With the Green Line, a very special tool range has been developed. The tools are made of up to 97 % renewable raw materials, which are recyclable and have an excellent life cycle assessment. WEICON Stripper No.100 Green Line is a universal tool for stripping a wide variety of cable types and cross-sections as used in the entire house installation. The tool can be used for circular and longitudinal cutting without adjusting the cutting depth. Especially suitable for flush stripping in ceiling and wall areas, such as in junction and distribution boxes. Also suitable for step-by-step stripping when installing satellite systems.
