HSS-E DIN 338 cobalt, ground, split point by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- 5 % cobalt
- Short, cylindrical
- 135° conical section
- Cross-ground finish to DIN 1412 C (from Ø 3,0 mm)
- Diametral tolerance h8
FOR USE IN / APPLICATION
- Materials with a high strength above 800 N/mm² which are difficult to cut
- Special alloys
- Solder resistant steel
- Stainless steel V2A -V4A
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Only for rotary use
HSS DIN 338 geschliffen, Split Point by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- High-performance high-speed steel
- Ground from the solid
- Short, cylindrical
- 118° conical section
- Cross-ground finish to DIN 1412 C (from Ø 3,0 mm)
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Only for rotary use
HSS DIN 338 standard by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Right-hand cutting, type N
- High-performance high-speed steel
- Short, cylindrical
- 118° conical section
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS DIN 338 standard, shank reduced by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Right-hand cutting, type N
- High-performance high-speed steel
- Short, cylindrical
- 118° conical section
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS DIN 340 ground, split point, long by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- High-performance high-speed steel
- Long, cylindrical
- 118° conical section
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS DIN 1869 ground, extra long by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- High-performance high-speed steel
- Extra long, cylindrical
- 118° conical section
- Diametral tolerance h8
- Point thinning from 3,2 mm Ø
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- For drilling extremely deep holes
- Cutting speed and feed rate must not be too high for drill bit stability
- Please ensure swarf is removed frequently and cooling is sufficient
HSS hollow section drill bit / facade drill bit by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- Cross ground as per DIN 1412
- Works standard
FOR USE IN / APPLICATION
- Profiles made of aluminium and steel
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS DIN 345 morse taper by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Right-hand cutting, type N
- High-performance high-speed steel
- 118° conical section
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In machines for mechanical processing
- Only for rotary use
HSS DIN 1897 pilot drill bit, ground, split point, extra short by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- Extra short, cylindrical
- High-performance high-speed steel
- 135° conical section
- Cross-ground finish to DIN 1412 C (from Ø 3,0 mm)
- Diametral tolerance h8
FOR USE IN / APPLICATION
- In thin sheets, steel and cast steel, alloyed and unalloyed, up to a strength of 800 N/mm², cast iron, malleable iron, ductile iron, short chipping aluminium alloys, bronze, tough brass, gunmetal, pressure castings, diecastings
- KEIL HSS pilot drill bits to DIN 1897 make it possible to drill a very accurate pilot hole without slipping thanks to the special selfcentring drill tip.
- It is not necessary to use a centre punch.
- This extra short drill bit is particularly suited for use with hand-held drills.
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS DIN 8037 carbide tipped by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Carbide tip according to DIN 8010
- Cutting angle 120°
- Profile-ground
- Right-hand cutting
- Short, cylindrical
- Driver on shaft as per DIN 1809
- Drill body of HSS
- Diametral tolerance h8
- With point thinning
FOR USE IN / APPLICATION
- For steel 800-1400 N/mm², cast steel above 700 N/mm², grey cast iron, chill casting, malleable iron, gunmetal, cast steel, tool steel, brass, bronze, manganese steel, cast iron, aluminium, bakelite, hard paper, glass, porcelain and many other special alloys which are difficult to machine
- In stationary drilling machines
HSS double-end drill bit, ground, split point by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Double-ended, right-hand cutting, type N, works standard
- High-performance high-speed steel
- 118° conical section
- Diametral tolerance h8
- Profile-ground
- Cross-ground finish to DIN 1412 C
FOR USE IN / APPLICATION
- For drilling thin sheets for car bodies and metal fabrication, for rivet holes, screw holes etc., in steel, zinc, brass, aluminium, copper sheet and plastic panels.
- In all rotary and percussion drilling machines
- In machines for mechanical processing
HSS bit drill KEILBIT, ground by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground
- Right-hand cutting, type N
- High-performance high-speed steel
- Short, cylindrical
- 118° conical section
- Diametral tolerance h8
- 1/4“ bit drive DIN 3126 - C 6.3
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank
HSS combination tool KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Profile-ground with cross-ground finish
- 1/4“ bit drive DIN 3126 - C 6.3
- High-performance high-speed steel
- Cone extension
- Induction zone
- High-performance high-speed steel
FOR USE IN / APPLICATION
- Up to max. 600 N/mm²
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank

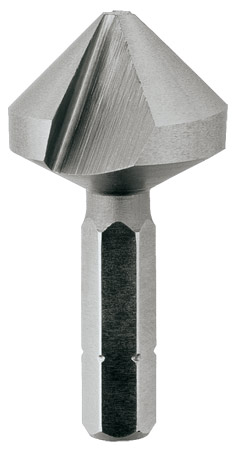

HSS countersink 90° KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Cutting head according to DIN 335 C
- 1/4“ bit drive DIN 3126 - C 6.3
- 3 cutting edges
- Radial and axial relief
FOR USE IN / APPLICATION
- Deburring and drilling of uniformly circular countersink holes with a smooth surface
- Suitable for almost all materials
- The best results are obtained at low speeds and a high feedrate Application
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank

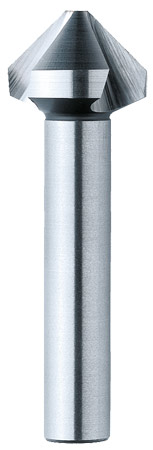

HSS countersink 90° DIN 335 C by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- DIN 335 C, with cylindrical shank
- 3 cutting edges
- CBN profile ground
- Radial and axial relief
- Right-hand cutting
- Diametral tolerance h8
FOR USE IN / APPLICATION
- Deburring and drilling of uniformly circular countersink holes with a smooth surface
- Suitable for almost all materials
- The best results are obtained at low speeds and a high feedrate Application
- In all rotary and percussion drilling machines
- In machines for mechanical processing

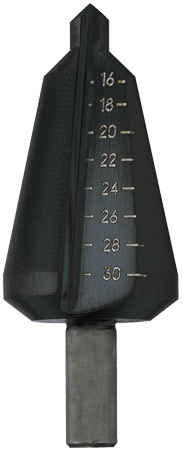

HSS tube & sheet drill by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- CBN profile ground
- Right-hand cutting
- High-performance high-speed steel
- Laser marking
- Two cutters
- Conical drilling
- Centering tip
FOR USE IN / APPLICATION
- For drilling large holes in thin material and reboring existing holes
- Steel sheet and stainless steel from 0.1 to 2 mm thick
- Non-ferrous metals from 0.1 to 5 mm thick
- Plastic up to 10 mm thick
- In all rotary and percussion drilling machines
- In machines for mechanical processing

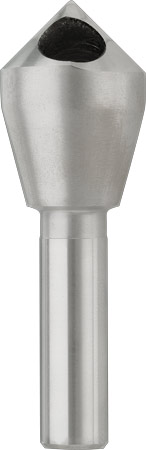

HSS deburring countersink 90° with cross hole by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Countersinking angle 90°, with cylindrical shank to works standard
- High-performance high-speed steel
FOR USE IN / APPLICATION
- Easy deburring of holes without vibration
- One step countersinking and deburring
- Suitable for soft long-chipping materials
- In all rotary and percussion drilling machines
- In machines for mechanical processing

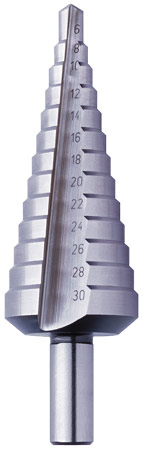

HSS step drill by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- CBN profile ground
- Right-hand cutting
- High-performance high-speed steel
- Laser marking
- Two cutters
FOR USE IN / APPLICATION
- For drilling large holes in thin material and reboring existing holes
- Steel sheet and stainless steel from 0.1 to 2 mm thick
- Non-ferrous metals from 0.1 to 5 mm thick
- Plastic up to 10 mm thick
- In all rotary and percussion drilling machines
- In machines for mechanical processing
