Universal drill bit Goldcraft
Universal drill bit Goldcraft by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- iso 5468
- special cutting edge geometry
- diamond-ground carbide tip
- universal drill bit with asymmetric spiral shape
- Milled flute for optimum removal of drilling dust
- Straight flute entry
- High-temperature brazing at about 1,120ºC
- special cutting helix with micro surface hardness
- ground surface
FOR USE IN / APPLICATION
- in all rotary and percussion drilling machines
SDS-plus MS5 universal drill bit GOLDCRAFT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Special cutting edge geometry
- Diamond-ground carbide tip
- Universal drill bit with MS5 helix
- High-temperature brazing at about 1,120ºC
- Special cutting helix with micro surface hardness
- Ground surface
FOR USE IN / APPLICATION
- Fits directly into all hammer drilling machines with SDS-plus and HILTI TE-C drive
Universal drill bit KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Asymmetric spiral shape
- Milled flute for optimum removal of drilling dust
- Straight flute entry
- High-temperature brazing at about 1,120ºC
- Grey blasted surface
- Euro standard carbide tip
- 1/4“ bit drive DIN 3126 - E 6.3
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machinese
- In machines for mechanical processing
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank
Hardstone Drill Bits
Tile / brick drill bit KERAMIK with TSM carbide tip by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Asymmetric spiral shape
- Milled flute for optimum removal of drilling dust
- Straight flute entry
- Tungsten-titanium TSM carbide tip
- High-temperature brazing at about 1,120ºC
- Burnished surface
- Up to 12 mm Ø with ROTASTOP shank
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- High contact pressure
- 20 seconds cooling time
- Only for rotary use
- In materials up to scratch hardness of 9
- Drilling process and tool life can be increased by cooling with water
Tile drill bit KERAMIK with Diamond with hexagon shank by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Vacuum-soldered diamonds
- Burnished surface
- hollow section completely filled with cooling liquid (up to Ø 15mm)
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- Recommended cooling time 10 seconds
- For rotary use only
- In materials up to scratch hardness 9
- Dry drilling, no water necessary
- Long tool life with water supply

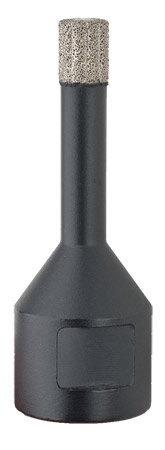

Tile drill bit KERAMIK with diamond with internal screw thread M14 by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Vacuum-soldered diamonds
- Burnished surface
- Hollow section completely filled with cooling liquid (up to Ø 15mm)
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- Recommended cooling time 10 seconds
- For rotary use only
- In materials up to scratch hardness 9
- Dry drilling, no water necessary
- Long tool life with water supply
Hardstone drill bit HARDTEC by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Asymmetric spiral shape
- Straight flute entry
- Milled flute
- Special carbide tip
- Diamond-ground carbide tip
- High-temperature vacuum brazing at 1120°C
- Ground surface
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- Only for rotary use
- High contact pressure
- Rotation speed approx. 1000 rpm
Carbide drill bit for hollow brick with pilot drill bit by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- High wearout resistant carbide cutting edge
- Burnished surface
- Made of high-alloyed stainless steel
- High-temperature brazed
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- Only for rotary use
Glass Drill Bits
Glass drill bit by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Specially ground carbide tip
- Chromated surface
- Thinned cross cutting edges provide precise
- drilling of pilot holes
- Tungsten-titanium TSM carbide tip
- High-temperature brazing at about 1,120ºC
- Burnished surface
- Up to 12 mm Ø with ROTASTOP shank
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Only for rotary use
- In materials up to scratch hardness of 8
Glasbohrer KEILBIT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Specially ground carbide tip
- Grey surface
- Thinned cross cutting edges provide precise
- drilling of pilot holes
- 1/4“ bit drive DIN 3126 - E 6.3
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Only for rotary use
- In materials up to scratch hardness of 8
- In all drilling machines, cordless screw drivers and bit holders with 1/4“ drill shank
Percussion Drill Bit
Concrete drill bit MS5 TURBOHEAD Xpro by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Concrete drill bit with round shank
- ISO 5468
- Made of chrome-nickel-molybdenum steel, shot-peened and intermediate level hardened
- TURBOHEAD Xpro head with centering tip and innovative 4-cutting-edge concept
- MS5 flute with reinforced core
- High-temperature brazing at about 1,120ºC
FOR USE IN / APPLICATION
- In all rotating and percussion drilling machines as well as hammer drills with three jaw chuck
- Usable in armed concrete
- For drilling plug holes
- Particularly suitable for fastenings
Concrete drill bit MS5 TURBOKEIL by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- TURBOKEIL carbide plate with centring tip
- MS5 flute
- Made of chrome-nickel-molybdenum steel, shot-peened and intermediate level hardened
- Straight flute entry
- High-temperature brazing at about 1,120ºC
- Grey blasted surface
FOR USE IN / APPLICATION
- In all rotating and percussion drilling machines as well as hammer drills with three jaw chuc
- For drilling plug holes
- Particularly suitable for fastenings
Granite drill bit PRIMUS by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Asymmetric spiral shape
- Straight flute entry
- Milled flute for optimum removal of drilling dust
- High-temperature brazing at about 1,120ºC
- Burnished and ground surface
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- For drilling plug holes
- Particularly suitable for fastenings
Percussion drill bit KEILER by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Asymmetric spiral shape
- Straight flute entry
- Milled flute for optimum removal of drilling dust
- High-temperature brazing at about 1,120ºC
- Grey blasted surface
- Euro standard carbide tip
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
- For drilling plug holes
- Particularly suitable for fastenings
- SW = AF = Hexagonal clamping shank with 45 mm length / wrench size
Masonry drill bit OPAL by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- ISO 5468
- Non-cutting flute
- High-temperature brazing
- Chromated surface
- Euro standard carbide tip
FOR USE IN / APPLICATION
- In all rotary and percussion drilling machines
Core Drill Bits
Universal hollow core by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- Tungsten-carbide coated
FOR USE IN / APPLICATION
- Only for rotary use
- Bayonet lock
- Can be used for sockets, holes for pipes, junction lines, conduits etc.

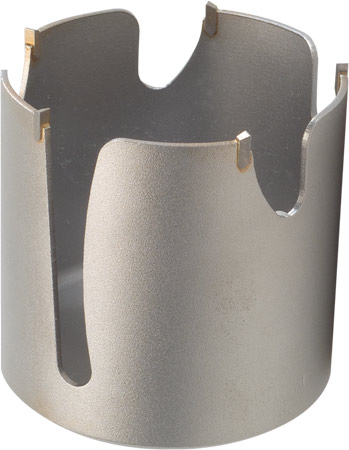

Universal hole saw M16 GOLDCRAFT by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- With internal M 16 thread
- Grey blasted and rust protected
- 3 carbide cutters up to 55 mm Ø
- 5 carbide cutters up to 90 mm Ø
- 6 carbide cutters up to 105 mm Ø
FOR USE IN / APPLICATION
- For drilling in various materials: various types of masonry, lightweight construction materials, plastics, solid wood, plastic coated wood etc.
- For different application in interior fittings, for electricans, heating filter, plumber etc. Quality and practical applications for professionals and do-it-yourselfers.
- Can be used in all SDS-plus hammer drilling machines or all rotary and percussion drilling machines depending on the locating shank used.
- Available in a wide range of dimensions for standard and special applications

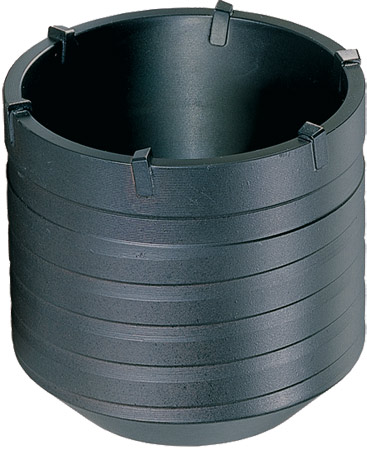

Hollow core M16 by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- With internal M 16 thread
- 4 carbide cutters for 25 mm Ø
- 6 carbide cutters for 30 - 80 mm diameter
- 8 carbide cutters from 90 mm diameter
- Burnished and hardened
- Made of chrome-nickel-molybdenum steel with extra thick wall from 65 mm ø without crossbore

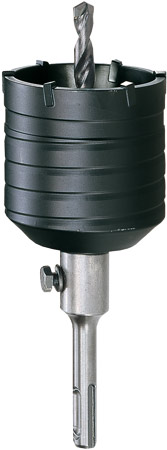

Hollow core M16 assembly, SDS-plus by KEIL, Germany
DRIVE / EXECUTION / FEATURES
- SDS-plus holder, short
- With centre drill bit
- With internal M 16 thread
- 6 carbide cutters
- Burnished and hardened
- Made of chrome-nickel-molybdenum steel with extra thick wall from 65 mm ø without crossbore
